Stainless Steel Wire Rope Sling Galvanized for Lifting ANSI Standard

Stainless Steel Wire Rope Sling Galvanized for Lifting ANSI Standard

ชื่อแบรนด์: Honghao
เลขรุ่น: HH-1858
ปริมาณการสั่งซื้อขั้นต่ำ: 1
ราคา: $750-800
ข้อมูลรายละเอียด
สถานที่กำเนิด:
ฉงชิ่งประเทศจีน
เกรดเหล็ก:
สแตนเลส
วัสดุ:
สแตนเลส
แรงดึง:
1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA
ความอดทน:
± 1%
ขั้นต่ำของโหลด:
125kN ถึง 30804KN
โหลดขาเดียว:
25kN ถึง 6161KN
โหลดขาคู่:
45kN ถึง 11089KN (0 ~ 90 °), 35KN ถึง 8625KN (90 ~ 120 °)
น้ำหนัก:
0.67kg/m ถึง 180.13kg/m
รัศมีโค้งต่ำสุด:
1.5 DIA
เส้นรอบวงสลิงที่สั้นที่สุด:
เส้นผ่านศูนย์กลางสลิง 50 เท่า
ปัจจัยด้านความปลอดภัย:
5 (d≤60มม.), 6.31-0.022d (60 150 มม.)
บริการประมวลผล:
การงอ
การรักษาพื้นผิว:
ผสมผสาน
มาตรฐาน:
ASTM, GB, DIN, JIS, AISI, BS
การบรรจุหีบห่อ:
ม้วน 1,000 ม. ม้วน 500 ม. ม้วน 300 ม. ม้วน 200 ม. หรือกำหนดเอง
เน้น:

stainless steel wire rope sling

,

galvanized lifting wire rope

,

ANSI standard wire rope

คำอธิบายผลิตภัณฑ์

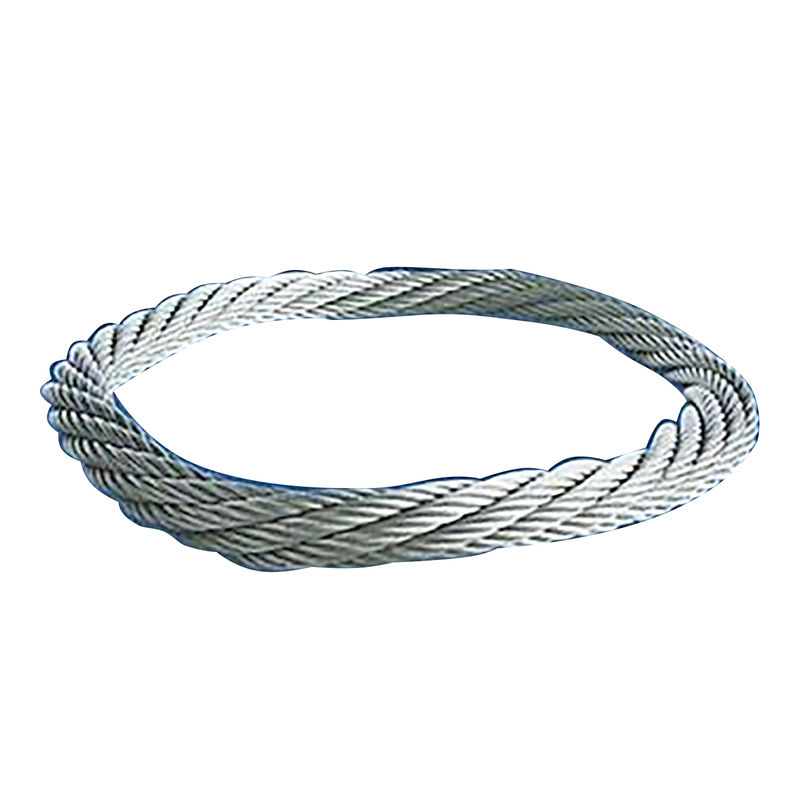

Stainless Steel Grommet Wire Rope Lifting Sling Pressed Endless with Bending Processing Service ANSI Standard
Product Attributes
Attribute Value
Steel Grade Stainless Steel
Standard AISI
Type Galvanized
Application Hanging lamp, pergola, flagpole, clothesline etc.
Alloy Or Not Non-Alloy
Special Use Cold Heading Steel
Tolerance ±1%
Processing Service Bending
Grade Stainless Steel
Delivery Time 15-21 days
Product Name Wire Rope Sling
Material Stainless Steel
Product Specifications
Standard ASTM
Place of Origin China
Brand Honghao
Surface Galvanized, Ungalvanized
Tensile Strength 1570MPA, 1620MPA, 1670MPA, 1770MPA, 1960MPA
Material Stainless Steel / High Carbon Steel
Standard ASTM, GB, DIN, JIS, AISI, BS
Term of Payment L/C, T/T, D/P, Western Union, One Touch
Packing 1000m roll, 500m roll, 300m roll, 200m roll or as your requirements
Product Features
  • Grommet sling spliced by wire rope with class B or AB, fiber core, nominal tensile strength 1670MPa
  • Available in three surface treatments: galvanized with lubrication, galvanized without lubrication, and ungalvanized
  • Breaking load varies based on wire rope capability selection
  • Minimum breaking load is 5 times working load with adjustable safety factors
  • Ideal for limited space lifting with minimum sling circumference of 50 times sling diameter
  • Minimum bend radius of lifting point area not less than 1.5 times diameter
  • Material: Galvanized or Stainless Steel
  • High tensile strength, good flexibility, low elongation
  • Widely used in conveyor belt systems
Technical Specifications
ITEM No. Min. Breaking Load (kN) Single Leg Working Load (kN) Double Legs Working Load (kN) 0~90° Double Legs Working Load (kN) 90~120° Weight (kg/m)
WJT15 125 25 45 35 0.67
WJT18 181 36 65 51 0.97
WJT21 246 49 88 69 1.33
Product Images
Packing & Delivery
Stainless Steel Wire Rope Sling Galvanized for Lifting ANSI Standard 6

Wrapped in plastic reel or wooden reel, then put on pallets or in wooden box, or as per customer's requirements.
